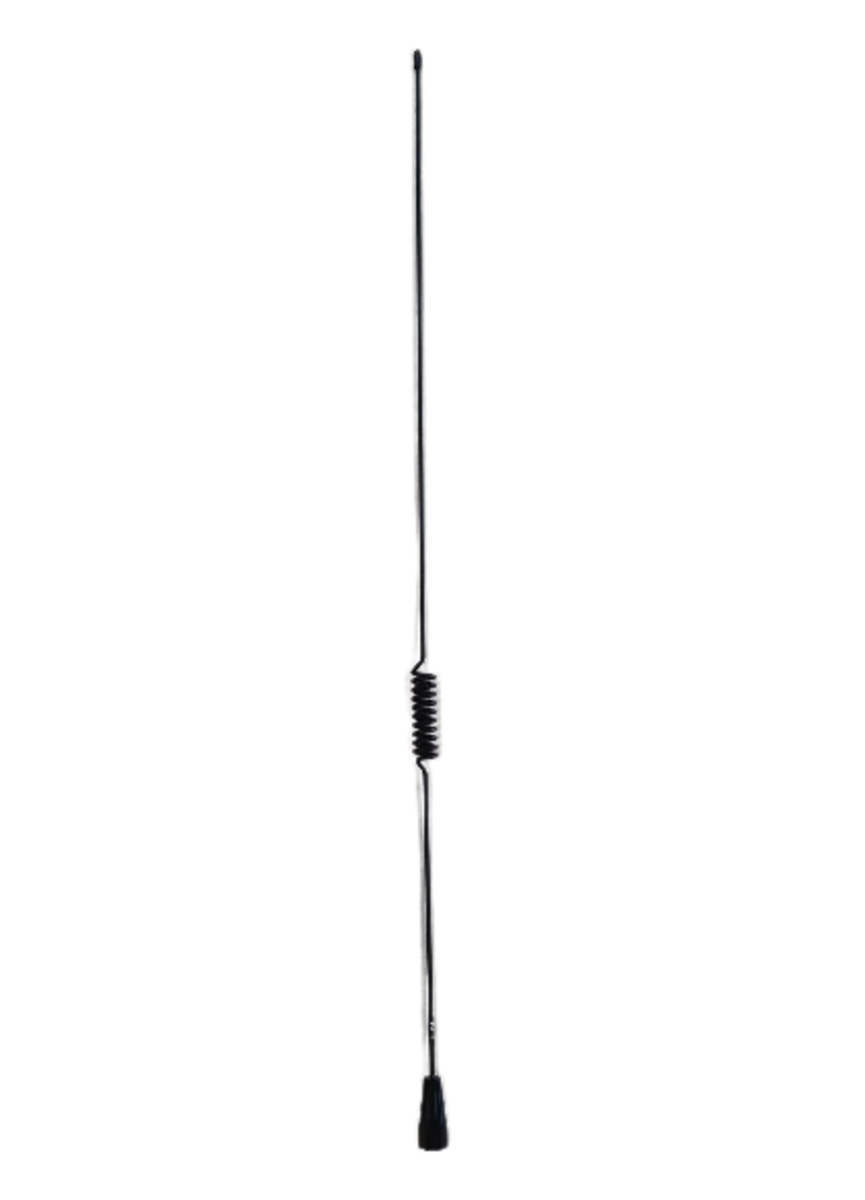

RFI UHF 4.5dB Phasemaster Whip (450-470 MHz) Black

In stock
Product Details
Brand: RFI

RFI UHF 4.5dB Phasemaster Whip (450-470 MHz); Black

The CSW20 Series Phasemaster™ antennas are our most popular roof mounts due to their unmatched performance and superior strength. The highly flexible stainless steel whip and consistent 4.5dB gain has made them a favourite in virtually all roof mount applications.

CSW24 Features:

• Outstanding performance - precisely matched phasing coil separating e wave over ½ wave electrical elements

• Supplied in colour coded bands then fine tuned in field with chart

• Black flexible 17-7PH Stainless steel whip will always bounce back after knocks and bumps

Brand RFI
Frequency MHz 450 - 470
Tuned Bandwidth 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
VSWR 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
Nominal Gain [dBi] 4.5
Power [W] 100
Frequency Range [MHz] 450 - 470
Band 450 - 470MHz
Tuning Trim to frequency using supplied tuning chart
Cable And Connector Not included, order separately
Whip Length mm 608
Whip Material 17-7 PH Stainless steel with black high gloss plating
Packaging Clear hanging bag
Antenna Type Omni
Antenna Application Vehicle Antenna
Frequency Band UHF 380-520 MHz
Antenna Configuration SISO
